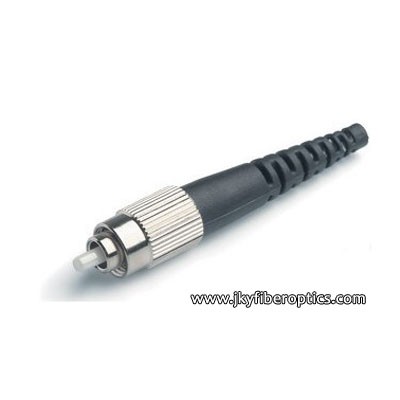

FC/PC SM SX Connector 3.0mm
AVAILABILITY

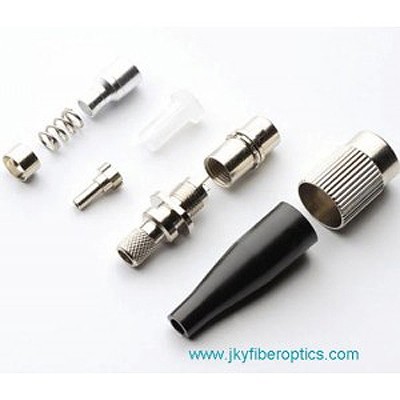

-The connector can be supplied as a pre-assembled one-piece connector or as multi-pieces connector.
-Clips are available for SC and LC duplex connectors
Housing kits without ferrule are available.
-PC and APC are available
|
FEATURES |
|
|
Low insertion loss and back reflection loss |
Ferrule end surface predomed |
|
High precision alignment |
Nickel plated brass body |
|
Boots in a variety of colors |
Free-floating ceramic ferrule |
|
Bayonet style housing for easy termination |
|
|
SPECIFICATIONS |
||
|
|
Single mode |
Multimode |
|
Insertion Loss |
≤0.20dB |
≤0.25dB |
|
Return Loss |
≥55 dB |
|
|
Durability |
<0.20 dB typical change, 1000 matings |
|
|
Operating Temperature |
-40 to + 85°C |
-40 to + 85°C |
P/N:FOCN-FC/PC-A-01-30-B-M
FOCN-FC/PC-A-01-30-B-O
