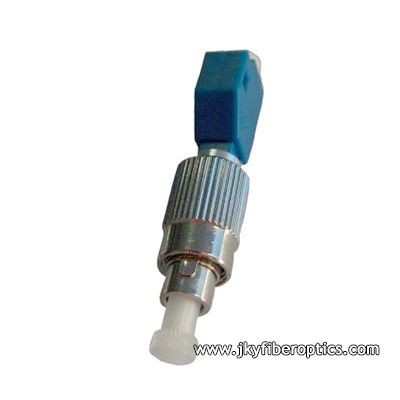

LC(F)-FC(M) Female to Male Fiber Hybrid adaptor
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
Hybrid fiber optic adapters offer a solution for hybrid applications where the two different kinds of fiber connectors or cable assemblies need to be linked with each other.
Features:
Types: FC-LC, FC-SC, FC-ST, FC-MU, SC-ST,SC-LC,SC-MU,ST-LC,SMA-ST,SMA-FC…
Low insertion loss, high return loss
Good compatibility
High precision of mechanical dimensions
High reliability & stability
Ceramic or Bronze Sleeve
PC、APC、UPC optional
Simplex / Duplex
Application:
Local Area Network
CATV System
Telecommunication Networks
Equipment Test
Specification:
|
Parameter |
Unit |
LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU,SMA-ST,SMA-FC… |
MTRJ |
E2000 |
||||||
|
SM |
MM |
SM |
MM |
SM |
||||||
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
|
Insertion Loss (Typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
|
Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
|
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
||||||
|
Repeatability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
||||||
|
Durability |
Time |
＞1000 |
＞1000 |
＞1000 |
||||||
|
Operating Temperature |
℃ |
-40~75 |
-40~75 |
-40~75 |
||||||
|
Storage Temperature |
℃ |
-45~85 |
-45~85 |
-45~85 |
||||||
P/N:FOAD-LC(F)-FC(M)-01-HMetal
