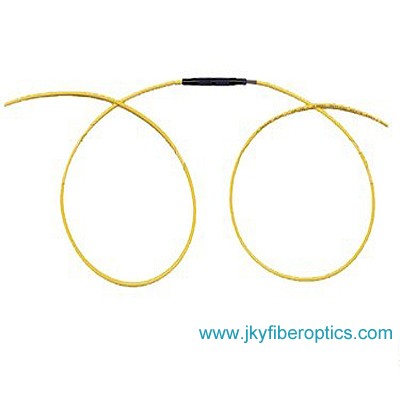

In-line Fixed Attenuator
The In-line Fixed Attenuator can be supplied with or without connectors, or as a pigtail. Every assembly exceeds Telcordia standards and is tested for insertion and return loss. In addition, each attenuator is individually tested and is supplied with it’s individual test record sheet.
| Attenuation Range | 0-30dB |
| Attenuation Tolerance | ≤0.5dB (1dB-10dB) |
| ≤1.0dB (11dB-30dB) | |
| Available Wavelengths | 1310nm, 1550nm, 1310&1550nm |
| Wavelength Dependence | <0.3dB Change in insertion loss for 1310-1550 nm |
| Return Loss | ≥50 dB (SPC) |
| ≥55 dB (UPC) | |
| ≥65 dB (APC) | |
| Ploarization Dependent Loss | ≤0.2dB |
| Temperature Range | -40℃ -80℃ (≤0.2dB in insertion loss) |
| Humidity Range | +/- 0.2 dB Change in 10% to 90% relative Humidity Range |
| Vibration | ≤0.1 dB change between 10Hz to 55Hz |
| Drop | +/- 0.2dB after 8 drops (3 axes) from 1.8 meters onto a hard surface |
P/N:FOAT-IL-FC/PC-FC/PC-03-1310-01
