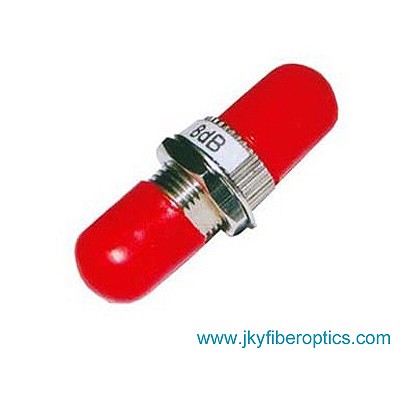

ST Fixed Attenuator(Adaptor Type)
APPLICATIONS
Telecommunication
Local area network
CATV,FTTH
Fiber optic sensors
EDFA loop tests and measurements
Optical transmission system
Testing instruments
FEATURES
Metal ion doped fiber
Attenuation levels ranging from 1 dB to 30 dB
Low back reflection
High power endurance
Maximum stability, reliability and flat spectral response
100% IL, RL and visual inspection tested
Easy to connect/disconnect (Push-Pull)
High mechanical resistance
SPECIFICATIONS:
| Item | Description |
| Operating Wavelength | SM: 1200-1600nm or 1310nm, 1550nm |
| MM: 850nm, 1300nm | |
| Return Loss | Less than 50 dB (SPC) |
| Less than 55 dB (UPC) | |
| Less than 65 dB (APC) | |
| Attenuation Accuracy | +/-0.5 (1-10) dB |
| +/-1.0 (11-30) dB | |
| Polarization Dependent Loss | Less than 0.2dB |
| Maximum Optical Input Power | 200mW |
|
Operating Temp. Range Storage Temp.Range |
-40℃ ~ 75℃ -50℃ ~ 85℃ |
P/N:FOAT-F-ST/PC-08-1310-M
