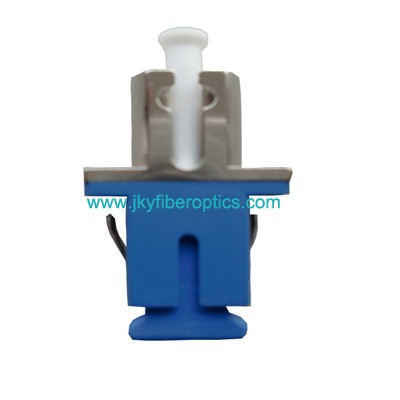

LC to SC Fiber Hybrid Adaptor,female to female,half plastic

The LC to SC hybrid Fiber Adaptor is to provide LC fiber patchcord to SC fiber patchcord fiber connecting. LC to SC hybrid fiber adaptors combine LC metal fiber adaptor with SC plastic fiber adaptor,allow mating of two different diameter ferrules fiber patchcord connecting.

SPECIFICATIONS:



                                    UPC                            APC

Insertion Loss                dB    less than 0.20      less than 0.20

Returen Loss                 dB    more than 50        more than 65

Repeatability                 dB    less than 0.20       less than 0.20

Work Temperature        °C          —40+85





P/N:FOAD-LC/UPC-SC/UPC-A-HB-HP
