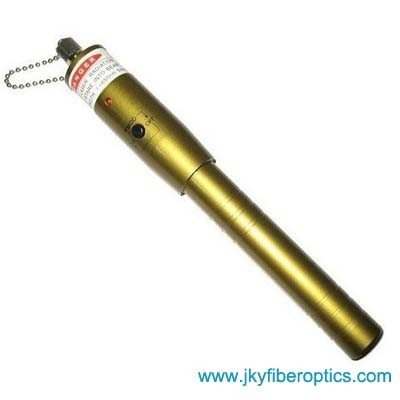

Pen Type Visual Fault Locator
This pocket sized tool sends a visible red laser light though fiber optic cables. Breaks or faults in the fiber will refract the light, creating a bright glow around the faulty area. The universal connector can be used for all the most commonly used fiber interfaces.
Technical Information:
Easy to check fiber faults with visual red laser light
Universally connector for test different ST, SC, FC, FDDA interferes
Tests for both single-mode and multi-mode cables with optional 2.5mm fiber optic connectors to 1.25mm adapter
Highly effective power circuits allow for stable laser power
Operates in both CW (Continuous wave) & pulse mode
Dust-proof design-keeps fiber connectors clean
(2) AAA-size alkaline batteries provide 15 hours of stable continuous operation
LED indicator for Power, Battery Low, and CW / Pulse indicators
Output Power:10mW
Spectral Width 650±10nm
Transmission: Continuous or 3Hz pulsed
Range: Visibility up to 10km
Power: 2 x AAA 1.5V Alkaline Batteries
Operating Temperature: -10 – +70
Storage Temperature: -40 – +85
Length: 6.3 in (160mm)
Diameter: 0.63 in (16mm)
Weight: 230g
Connector: Universal (2.5mm ferrule) F601B 2.5mm
