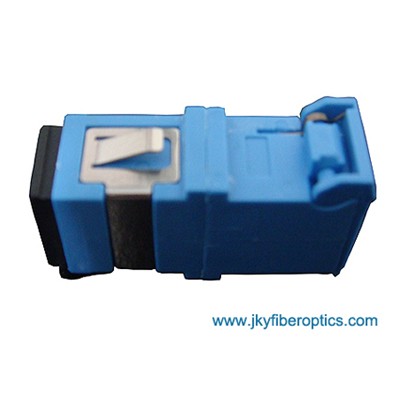

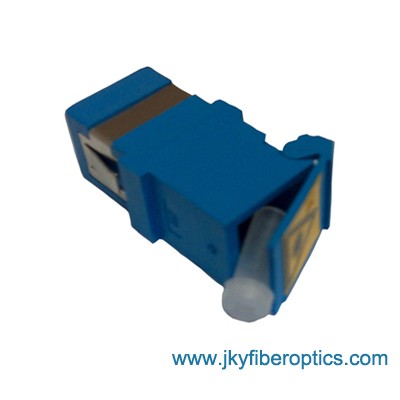

SC/PC SM Simplex Adapter With Dust Shutter
The SC/PC SM simplex fiber optic adapters with shutter are specially designed to suit FTTH applications.The shutters are designed to prevent ingress of dust and also to prevent accidental exposure to laser. Shuttered adapter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the same precision and optical performance as the normal adapter.
FEATURES:
With dust shutter
Panel clip for easy installation
Available in several standard colors
Available wihout flanges with flange, saving panel space
Meet JIS5974 and Bellcore GR-326 standard
Compliant with IEC874-14 & IEC874-19
All parts are compliant with RoHS
APPLICATIONS:
Telecommunication
CATV
LAN & WAN
Network
Broadband
FTTP
PARAMETERS:
Insertion loss:<0.2dB
Durability: 0.2dB Max Increase
Withdrawal Force(g/f): 100-300
Operation Temperature:-40C-+85C
P/N:FOAD-SC/PC-A-01-WDS
