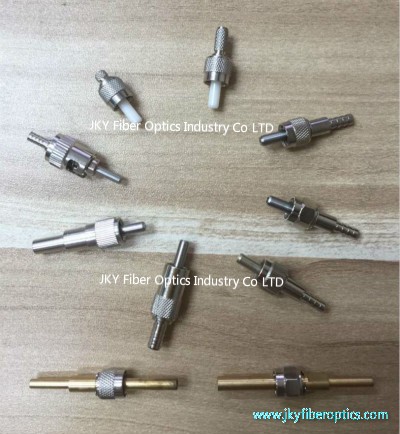

SMA905 Fiber Optic Connector
Known as FSMA connector,our SMA905 fiber optic connector have a threaded coupling nut and feature a stainless steel or a high quality zirconia ferrule with ID sizes up to 1100 microns to accomodate a wide range of optical fibers.It also was one of the first fiber optic interconnect system that gained industry wide acceptance. Today the connector is still widely used for military, industrial, and medical applications.
APPLICATIONS
• Medical / Surgical
• Laser Systems
• Spectrometers
• Industrial & Military
FEATURES
• Threaded nut connector
• TIA / IEC compliant
• Stainless Steel or Zirconia ferrule with custom ID sizes up to 1100um
• Simple termination and assembly
TECHNICAL DATA
Insertion Loss SM (typical) 0.20 dB
Material – Body Stainless Steel/ Nickel Plated Brass
Material – Ferrule Stainless Steel / Zirconia
Hole Sizes 125 micron to 1100 micron
Mating Durability > 1000 Cycles
Temperature Range -40ºC to +85 ºC
P/N:FOCN-SMA905-890um
